TransformerParts

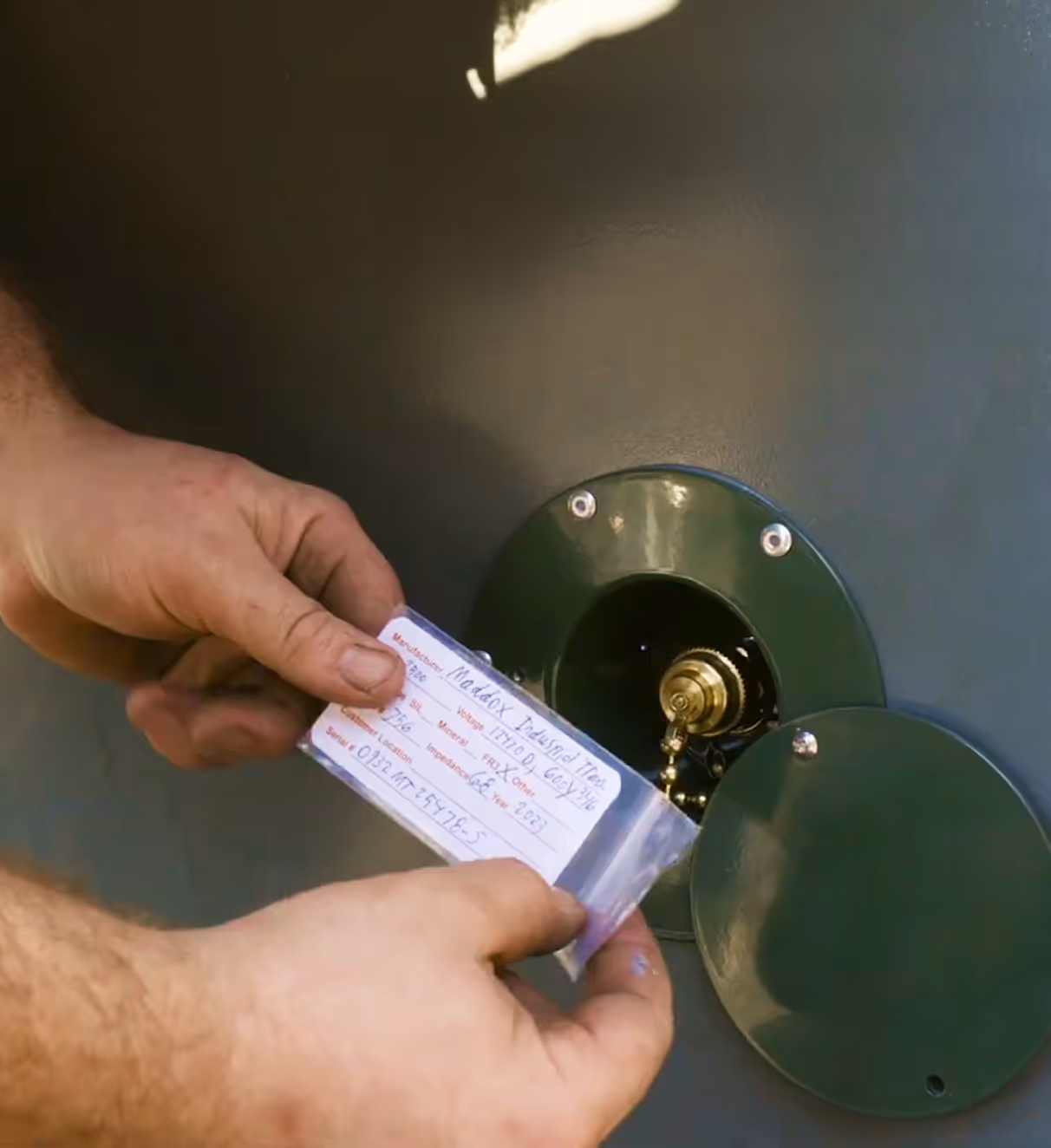

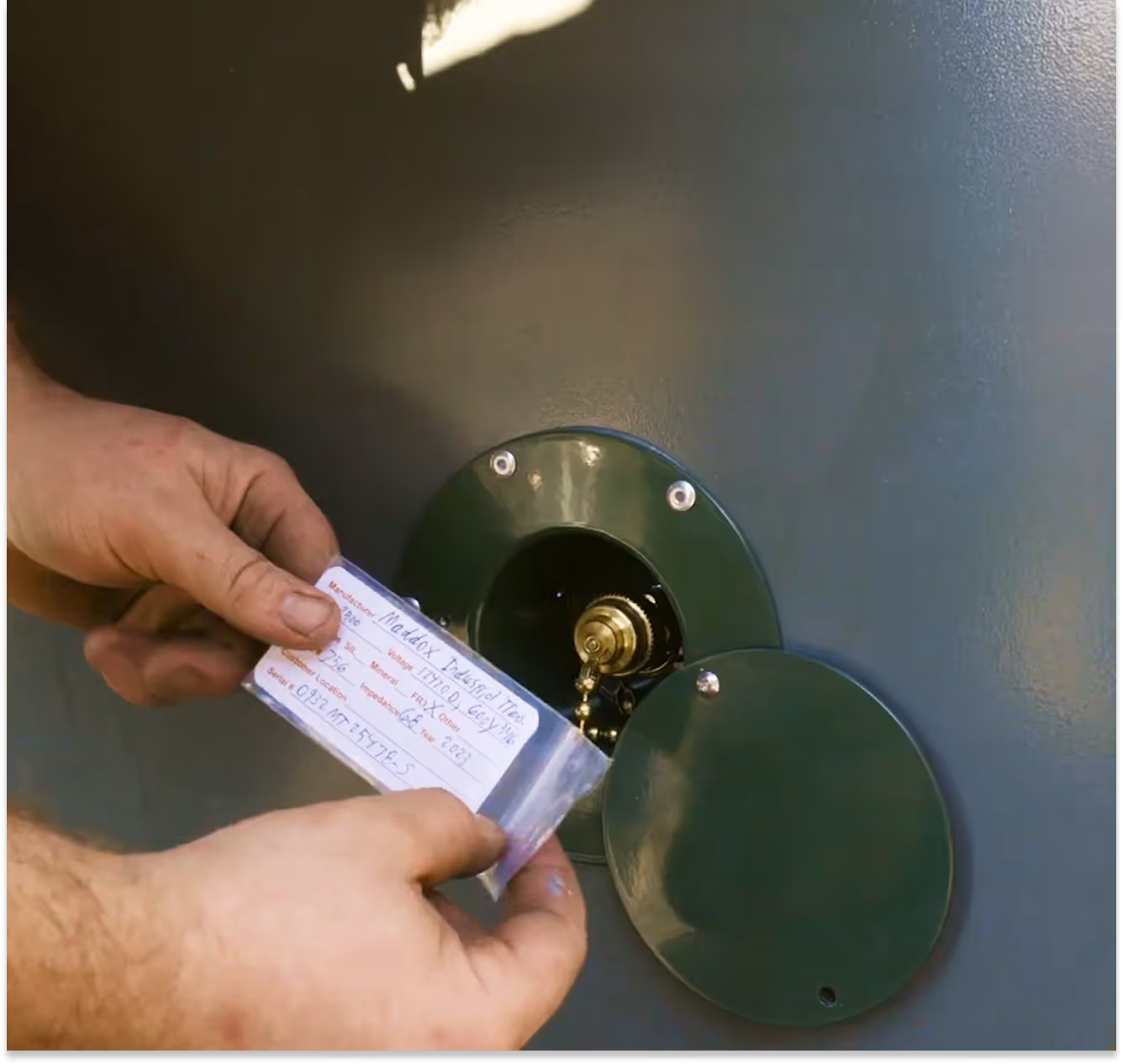

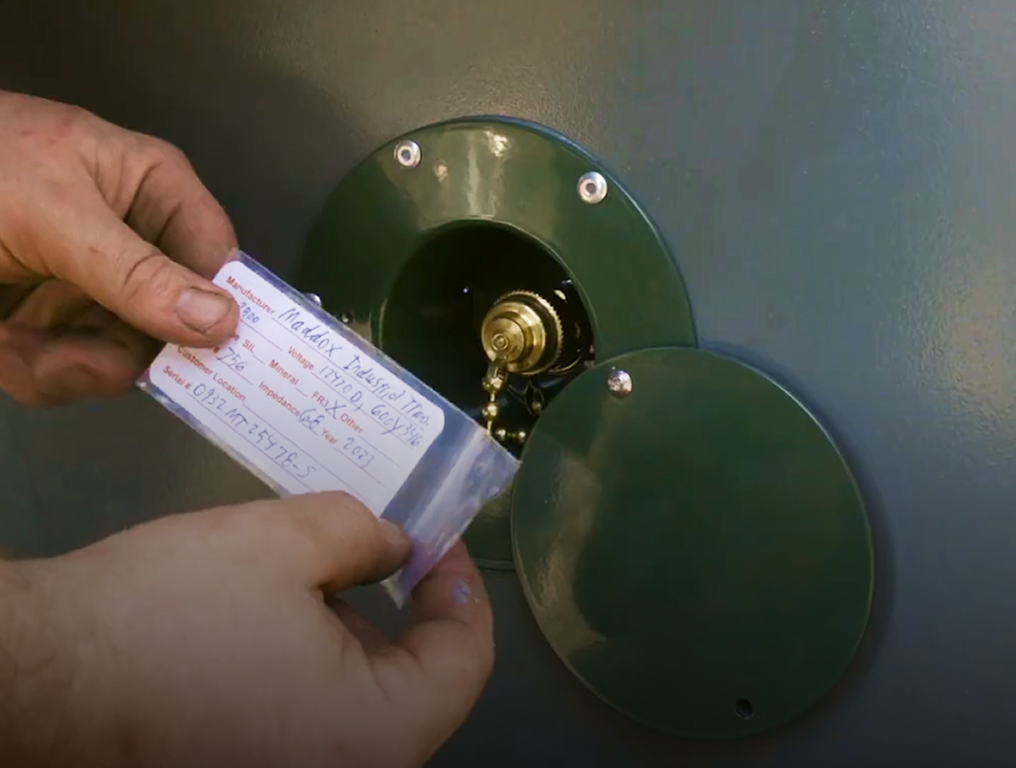

External sample kits let maintenance teams pull regular transformer oil samples from outside the cabinet through dedicated ports, so there’s no need to access energized internal components.

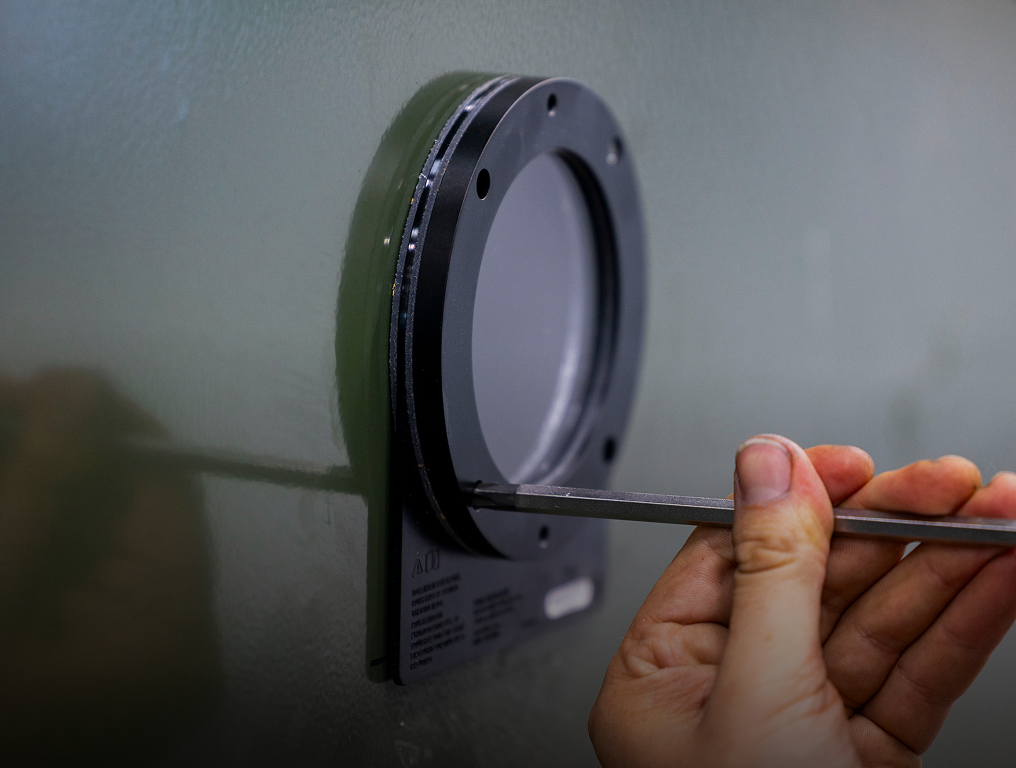

Inspection windows (Viewing and IR Windows) let you visually inspect internal transformer components without opening the enclosure or exposing personnel to energized parts.

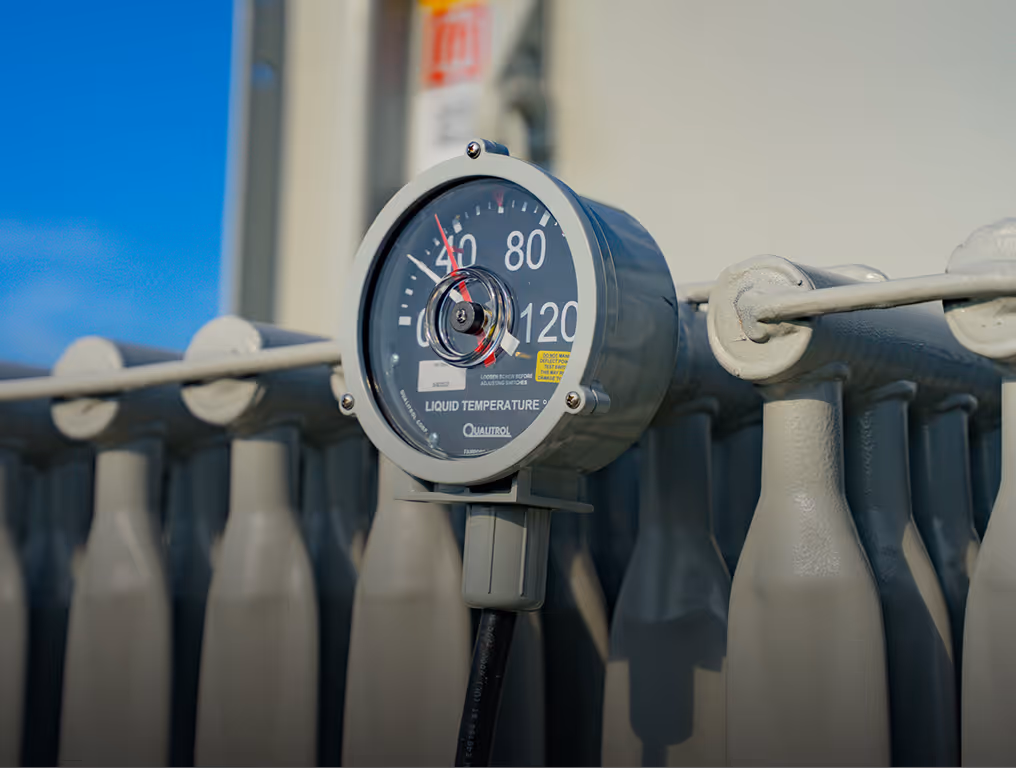

Transformer gauges monitor critical operating conditions like fluid level, fluid temperature, winding temperature, and internal tank pressure, enabling you to identify potential issues.

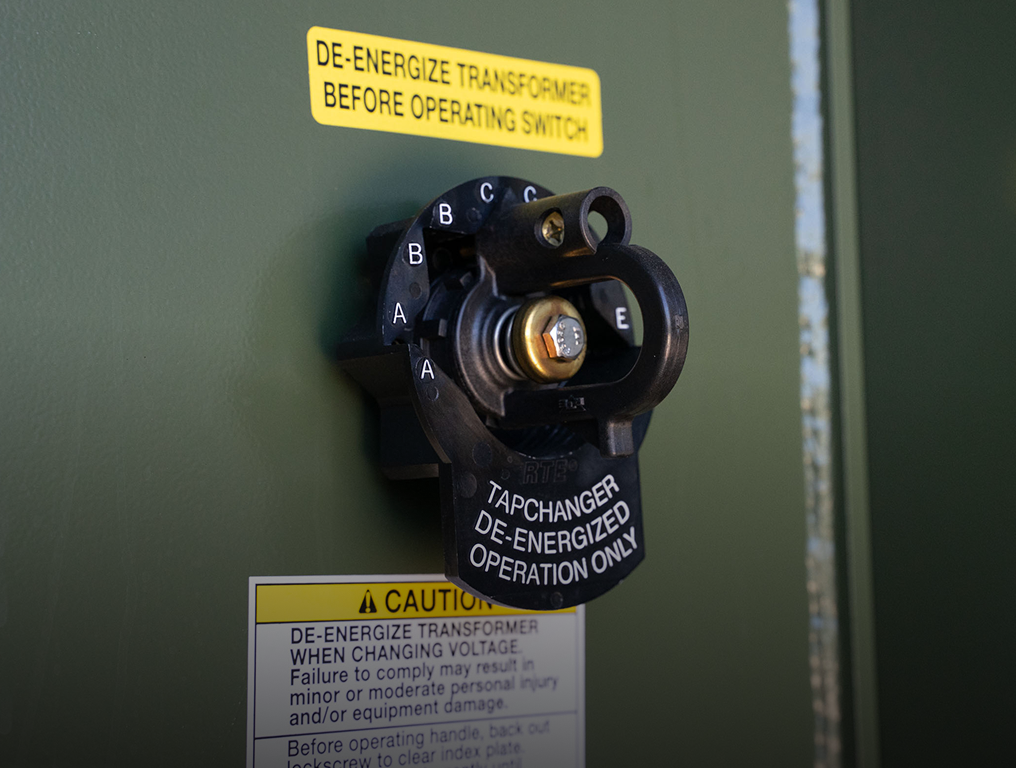

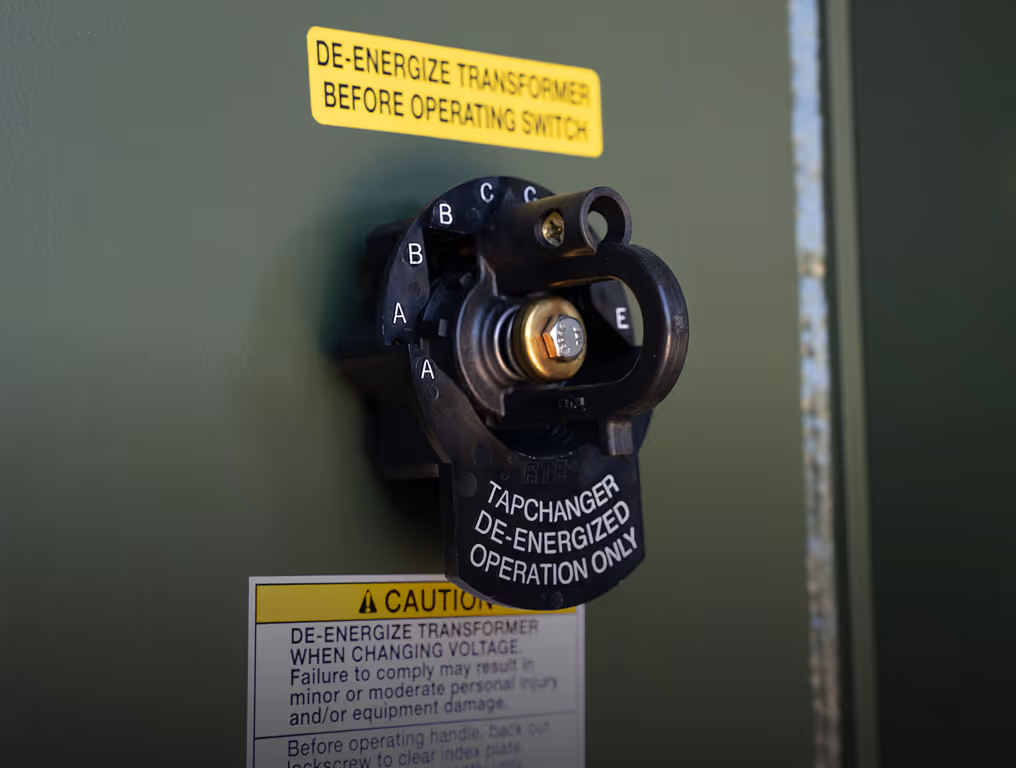

Tap changers allow operators to adjust a transformer’s voltage ratio to maintain the correct secondary voltage when the incoming utility voltage is too high or too low.

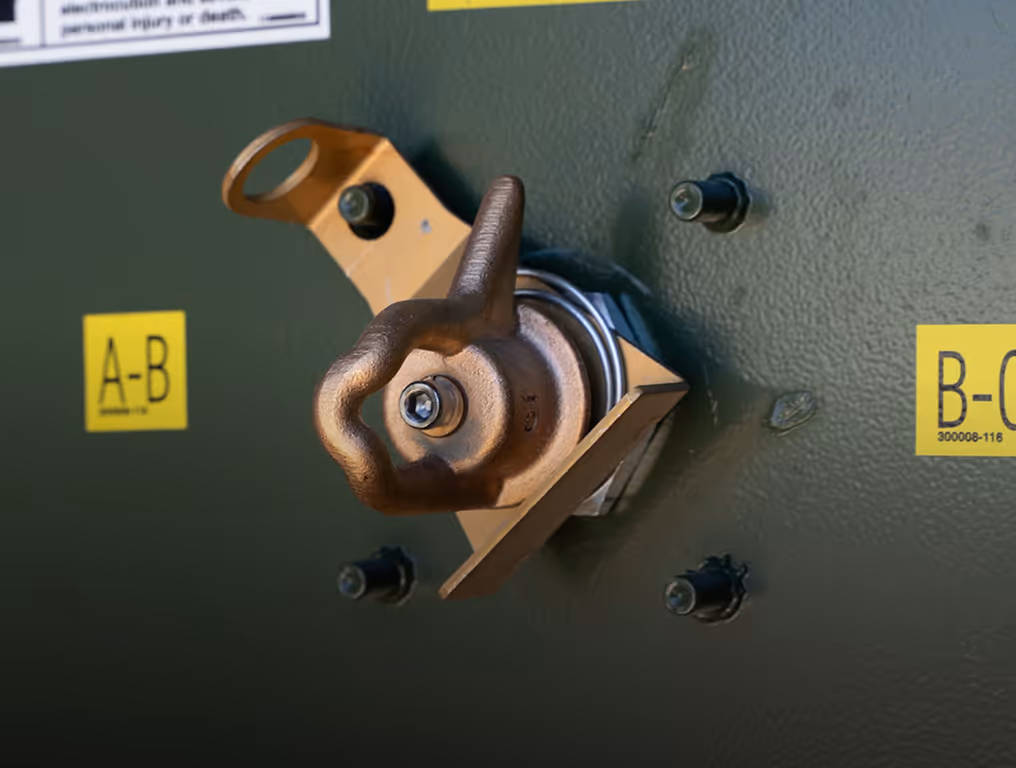

Load break switches are designed to safely make or break electrical current while the transformer is energized, allowing operators to switch between circuits or isolate sections without shutting the system down.

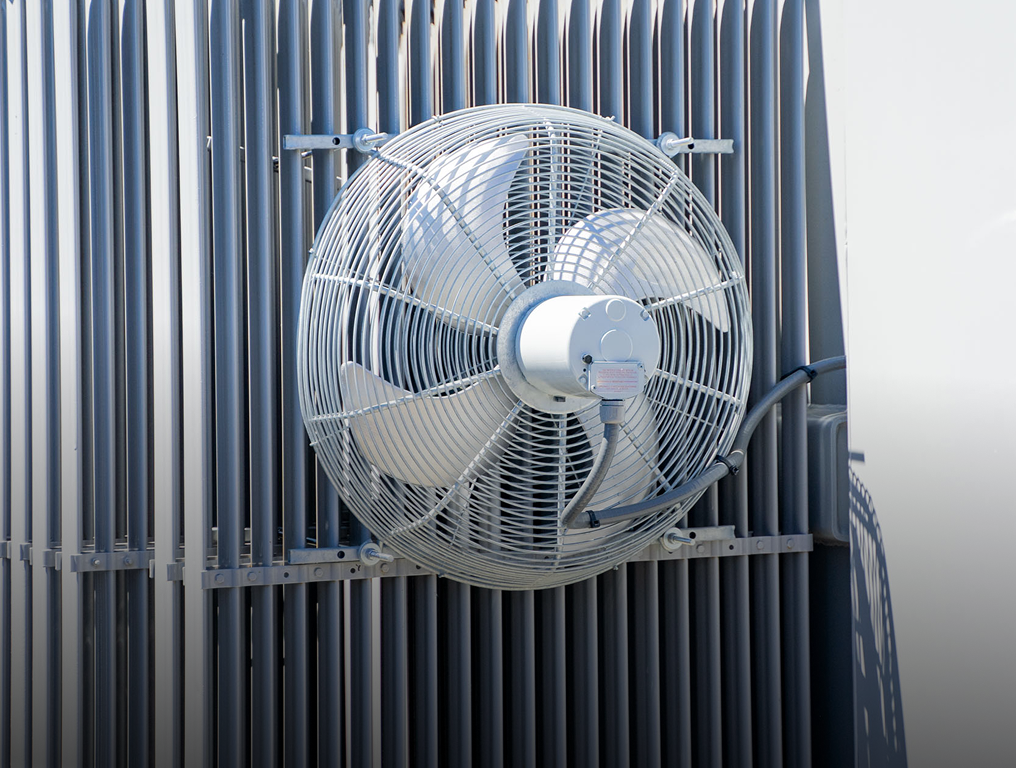

ONAN/ONAF fan packages provide additional transformer cooling by circulating air across the radiator system to help dissipate heat under higher loads.

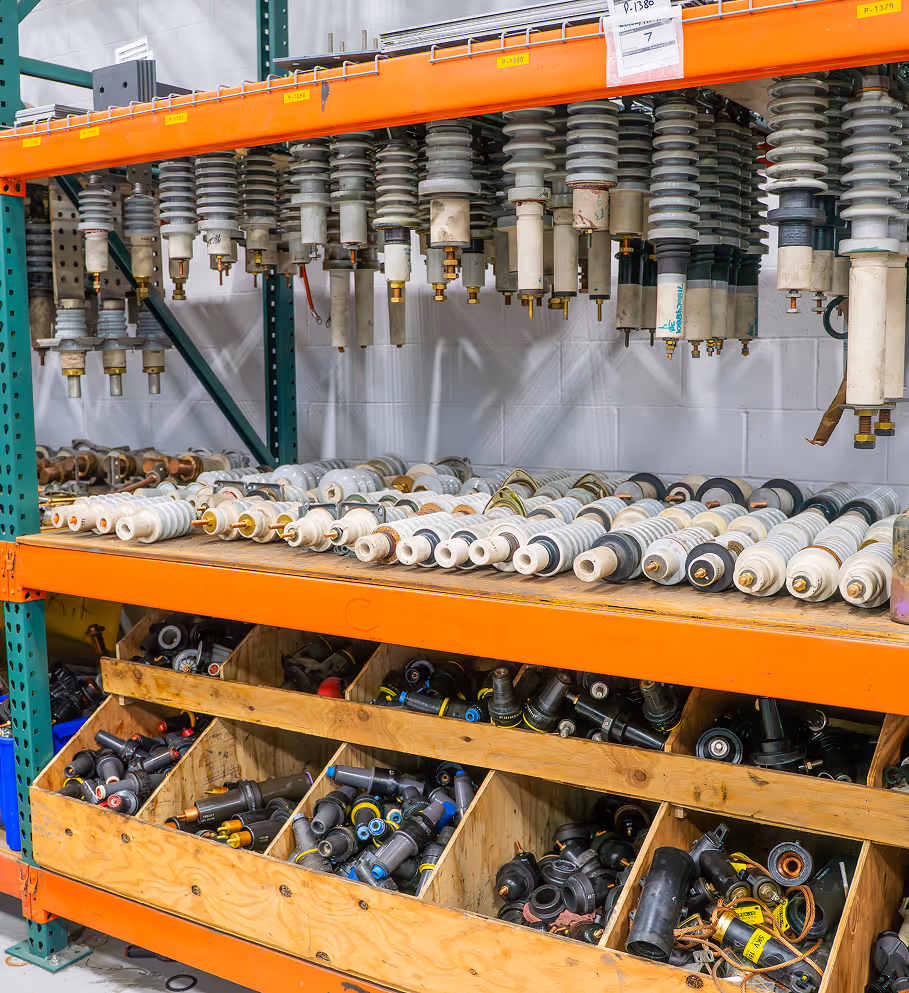

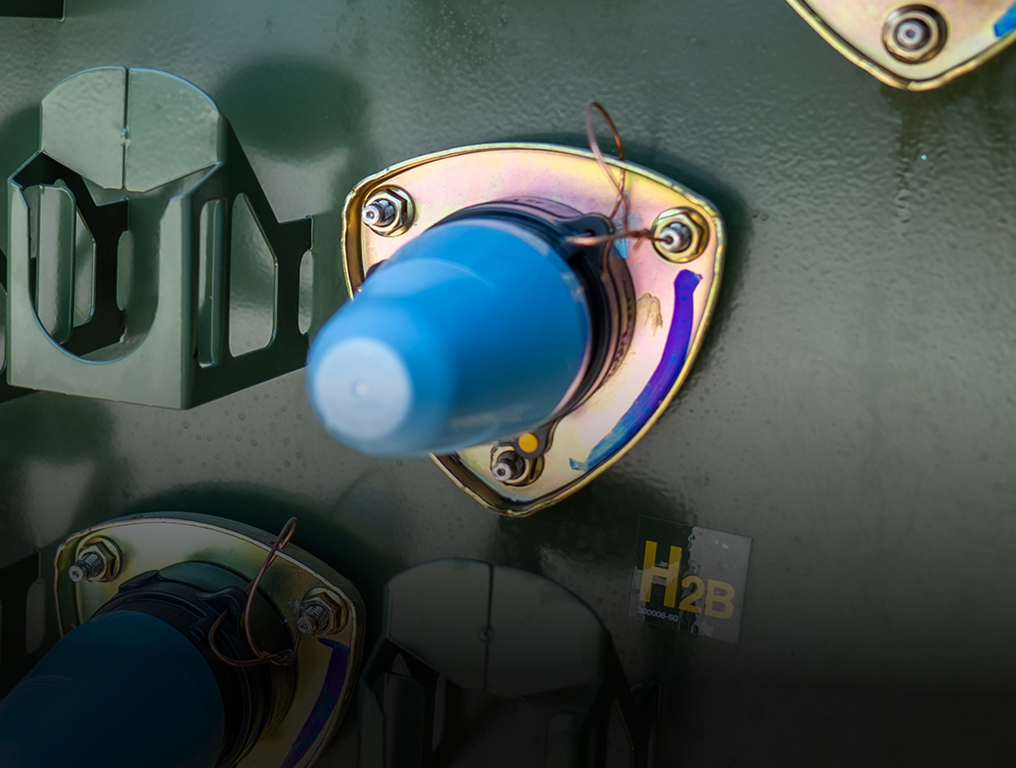

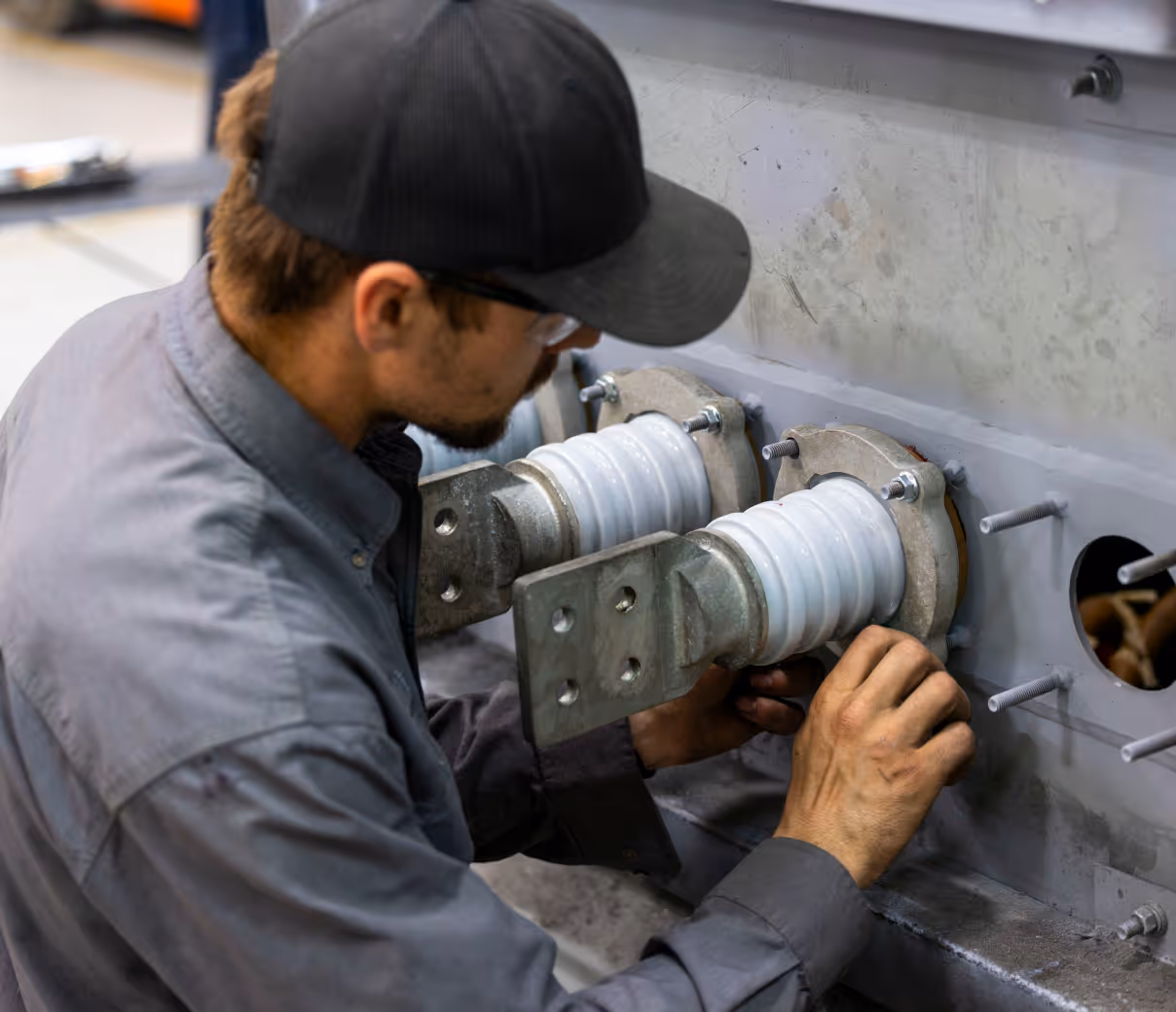

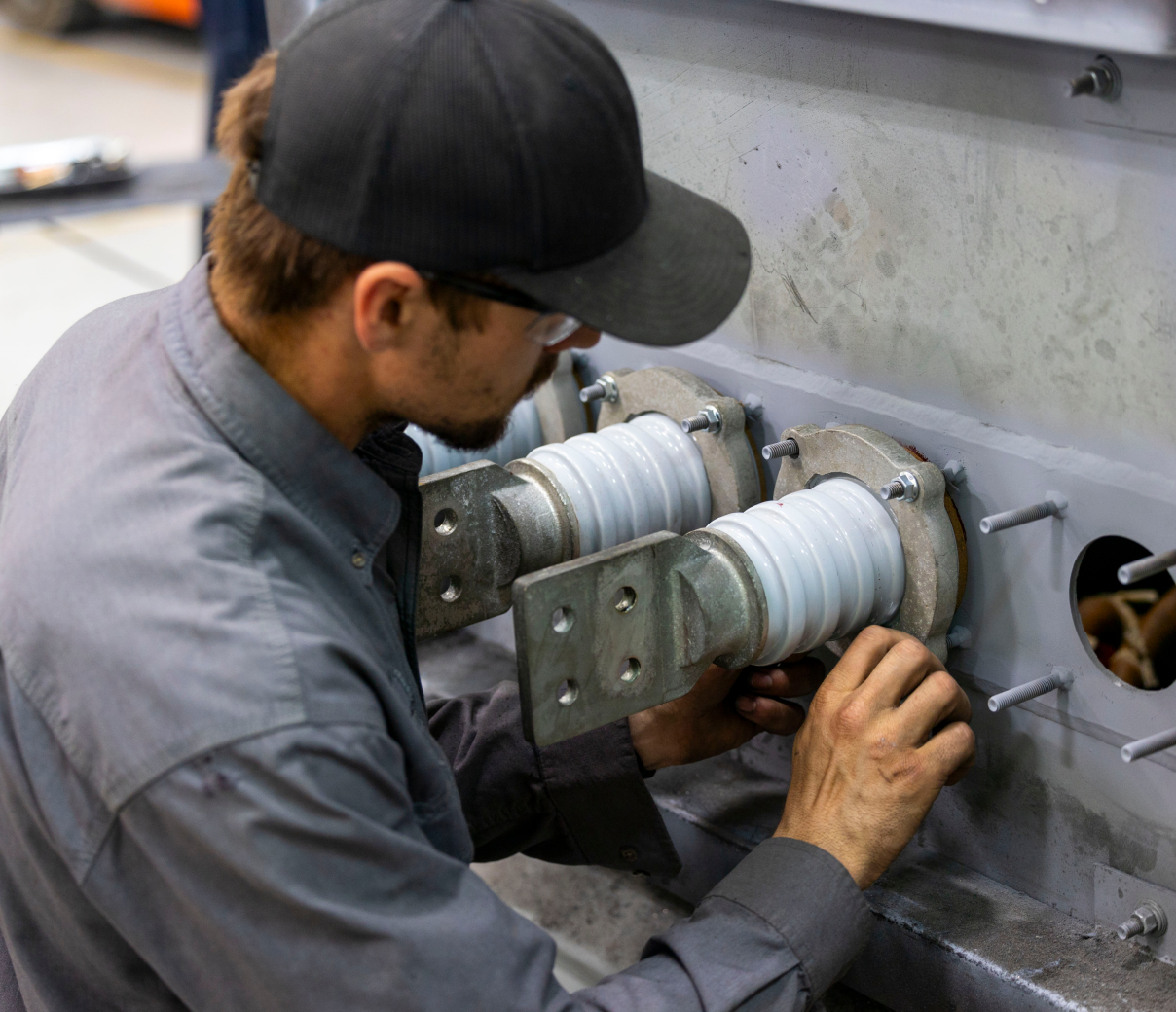

Transformer bushings are insulated components that allow energized conductors to safely pass through the grounded transformer tank without electrical contact to the enclosure.

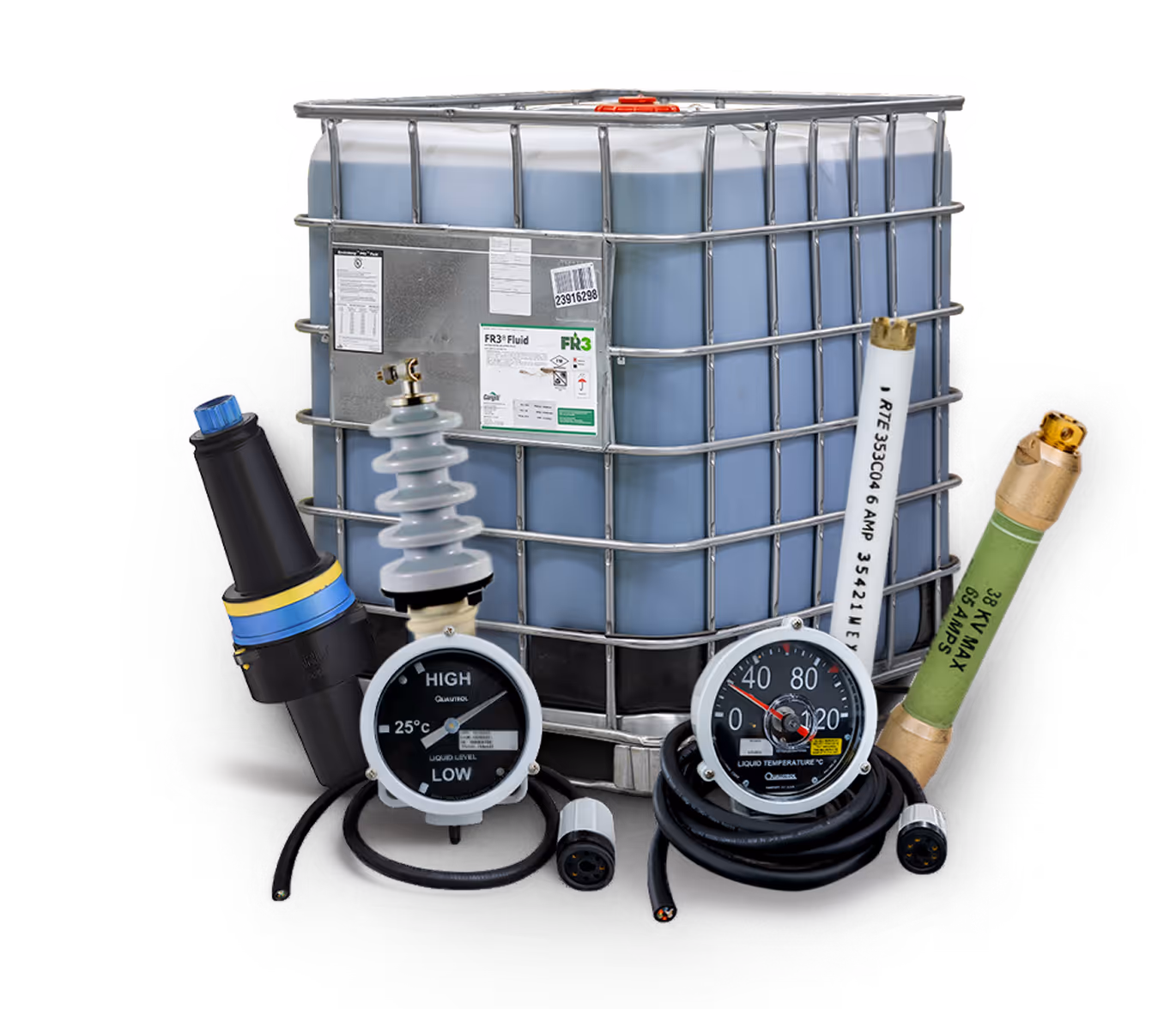

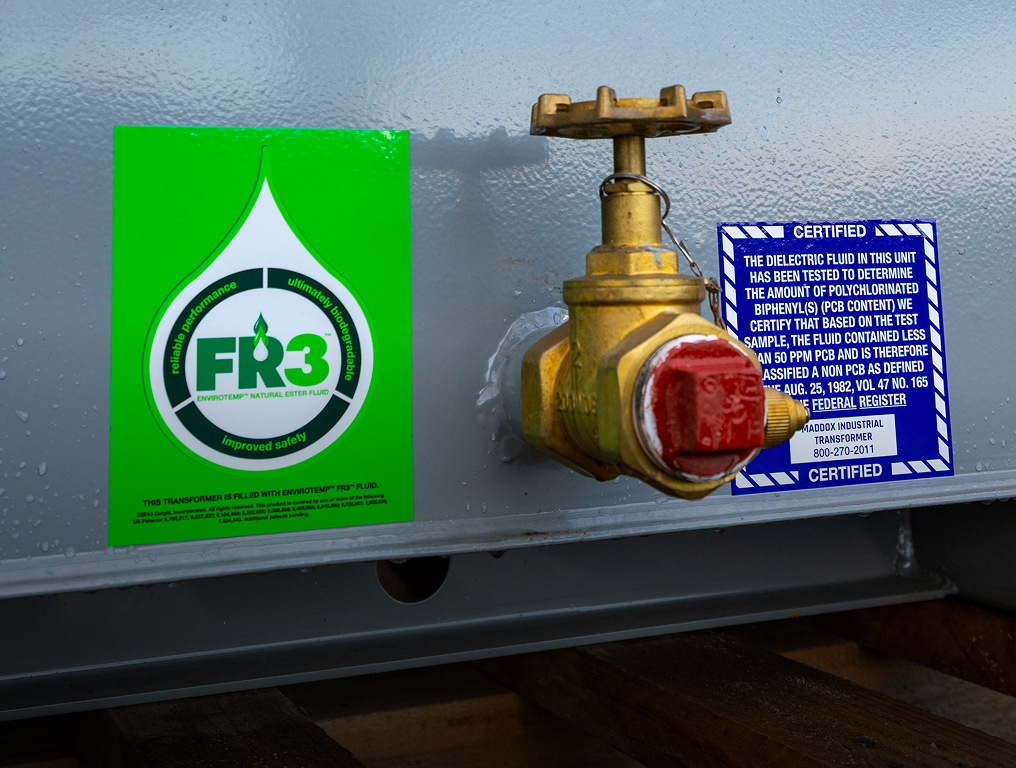

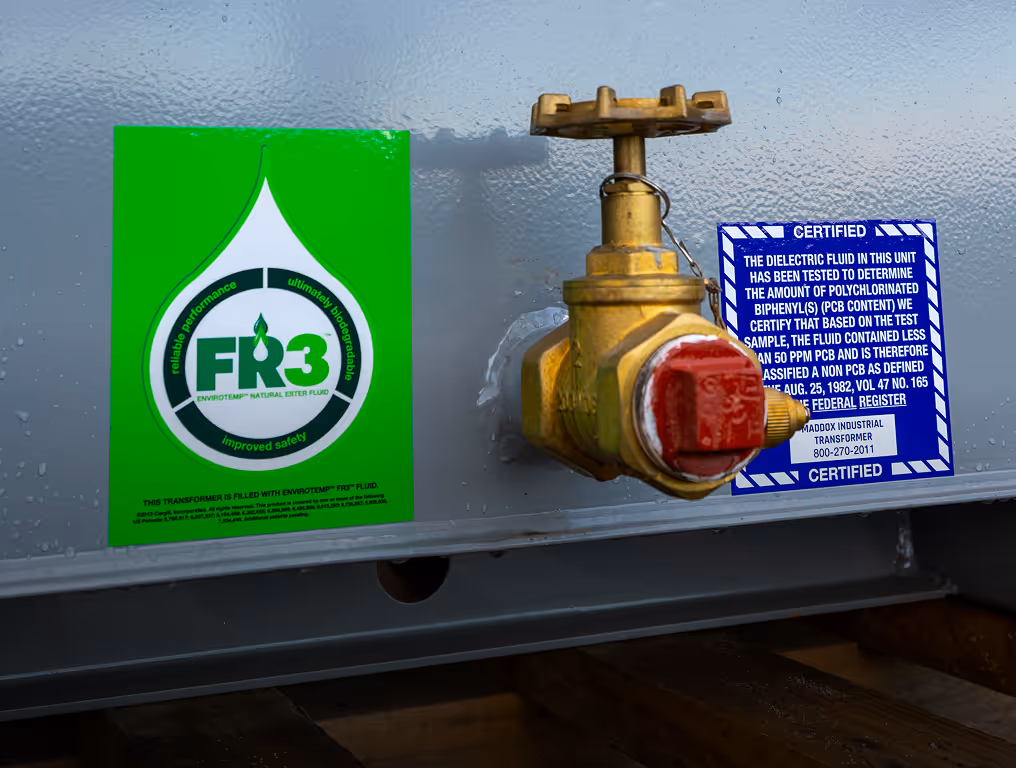

Transformer fluid, including mineral oil and FR3 fluid, provide insulation and remove heat from internal components to maintain safe operating temperatures and prevent electrical failure.

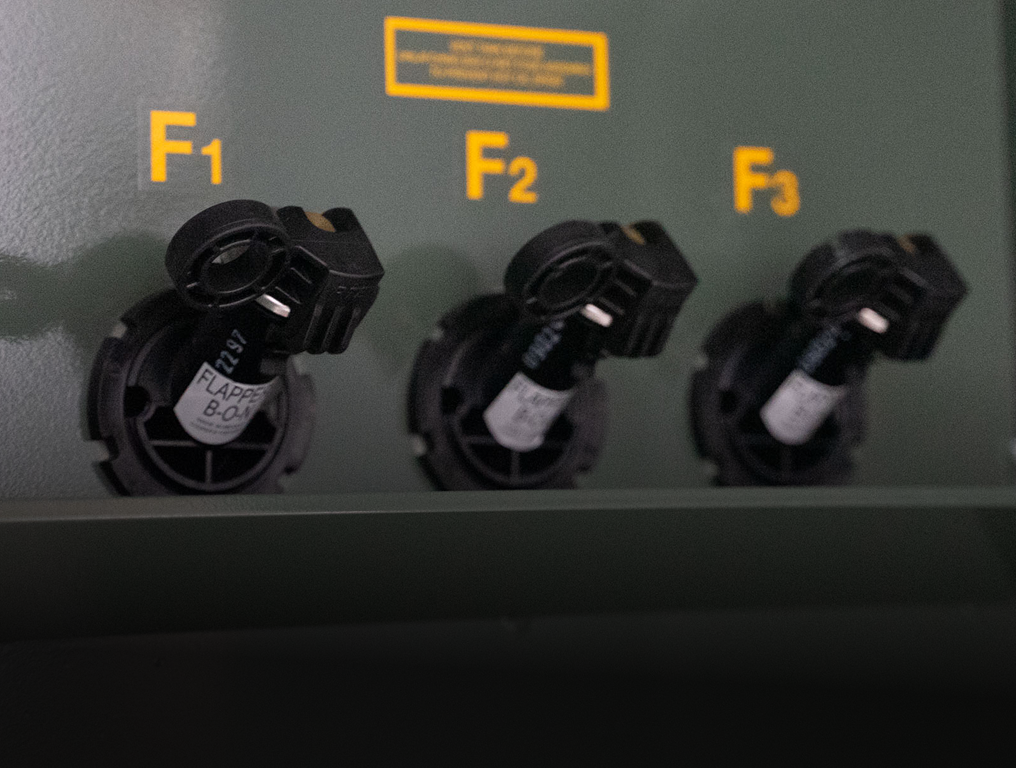

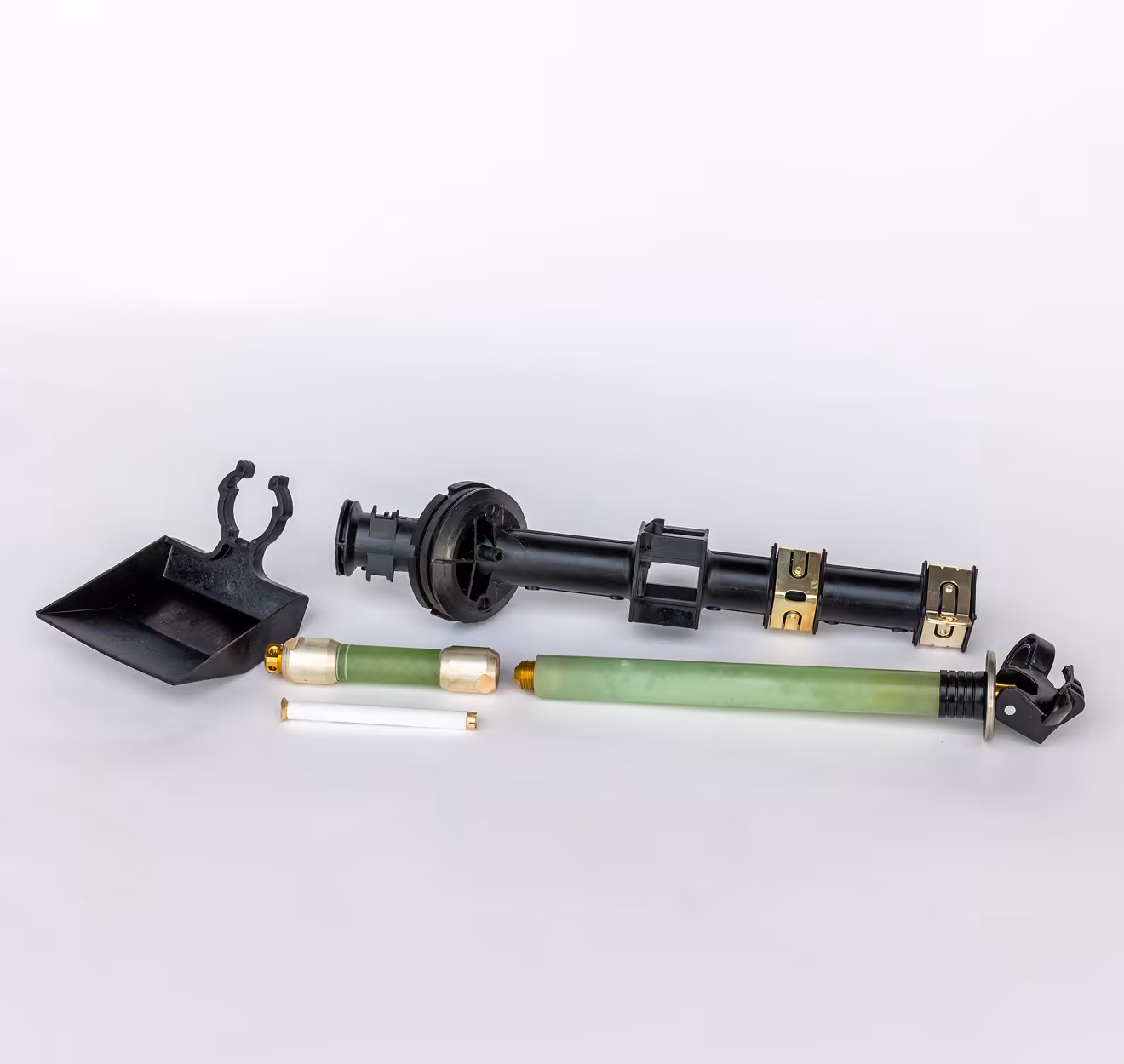

Bayonet fuses protect padmount transformers from overheating, overloads, and low-level faults by interrupting current before damage occurs.

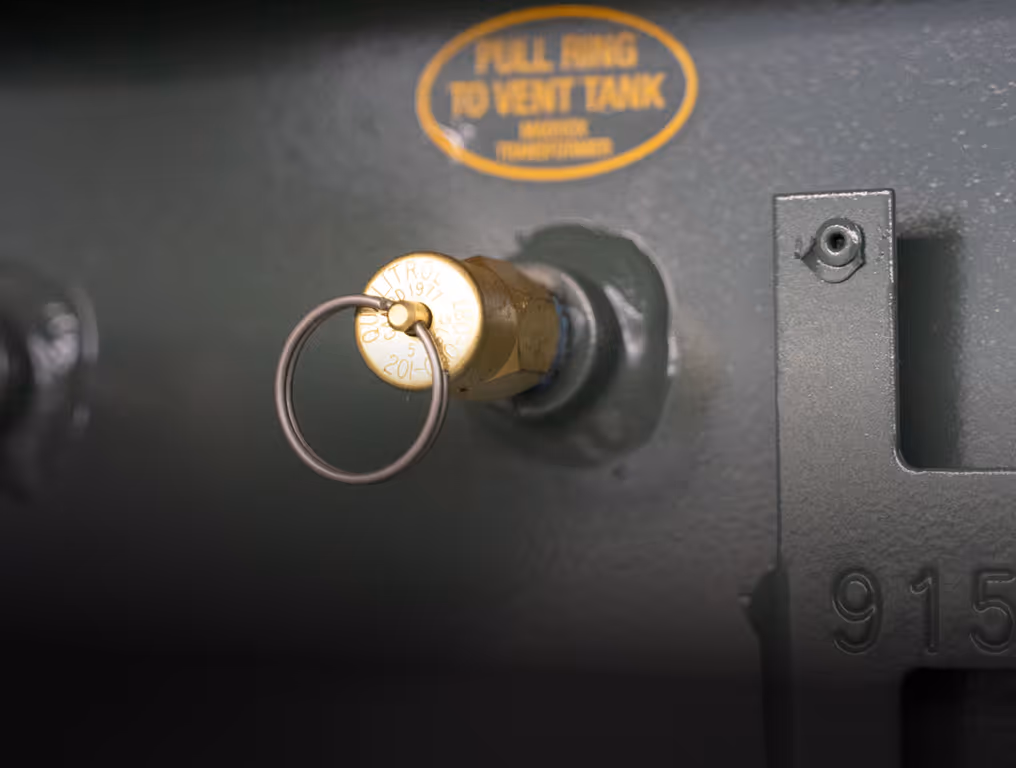

Pressure relief valves (PRV) automatically release excess internal pressure in a transformer tank to prevent damage or failure from over-pressurization.
