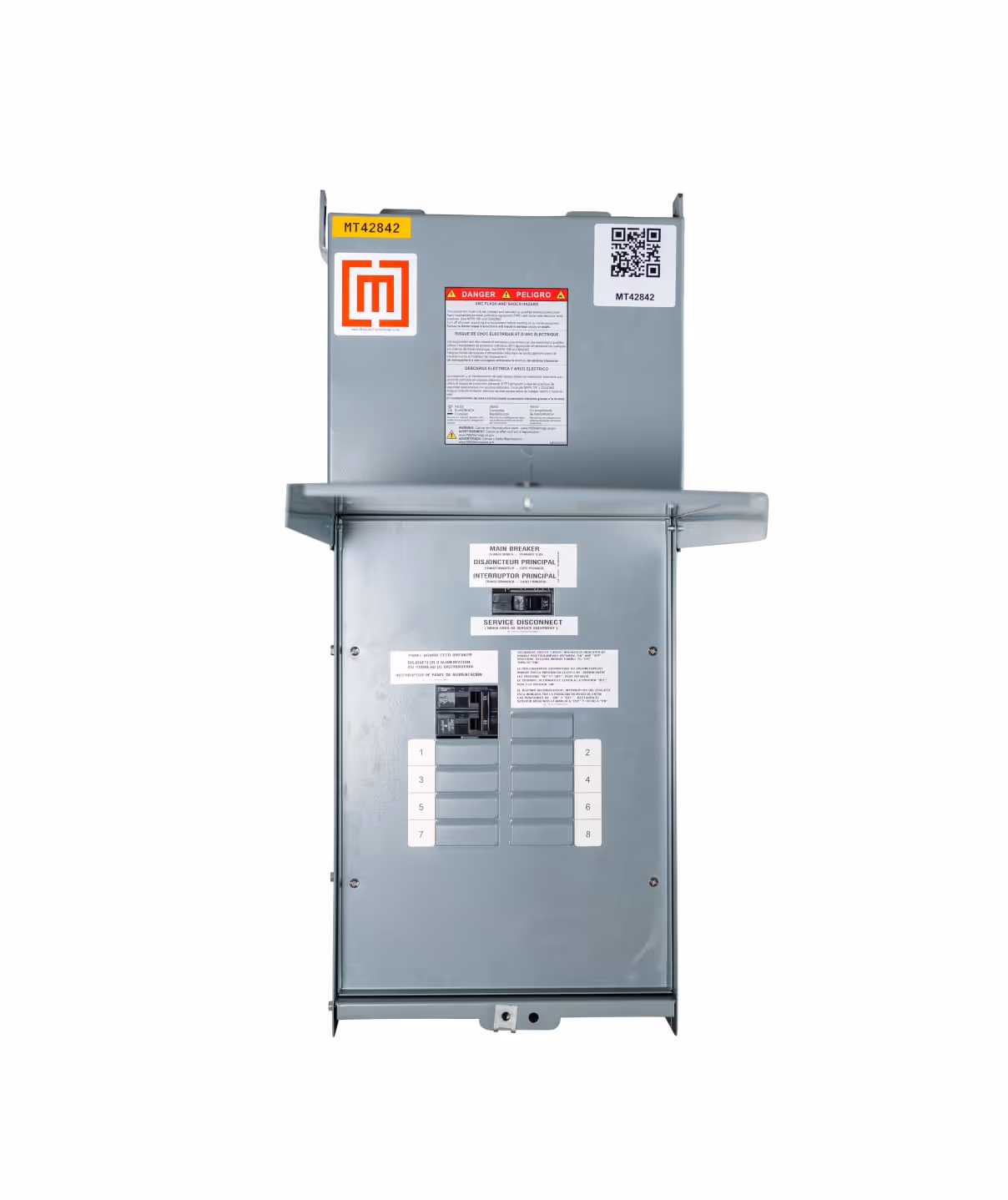

Capabilities

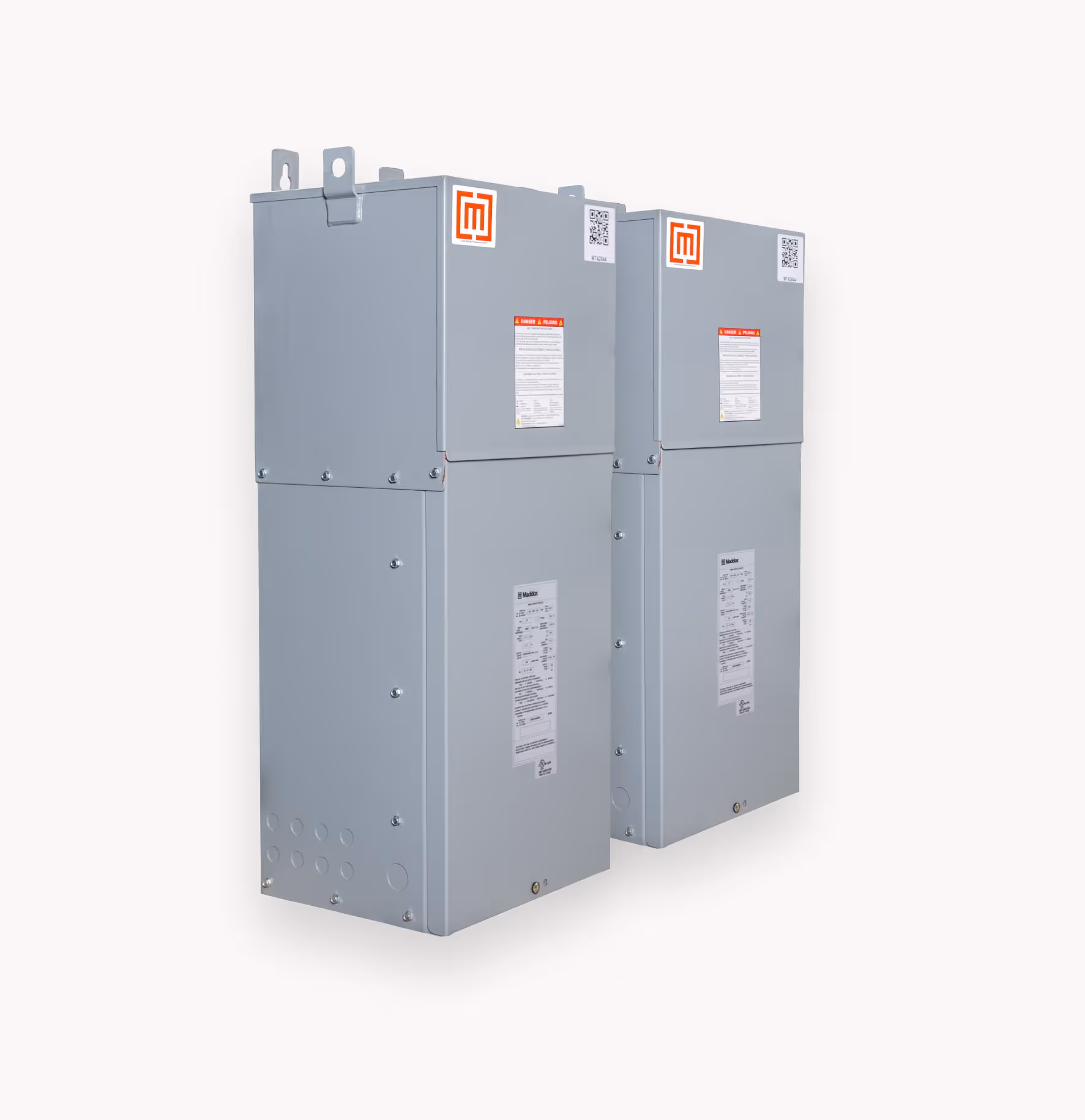

Maddox mini power centers combine a transformer, with a primary circuit breaker protection, and secondary main breaker distribution load center. These units save installation time and space by integrating these three components into a single rugged enclosure.
Mini Power Centers are used on low voltage distribution systems and loads requiring 120/240V single-phase.
Product Scope
- 5 kVA - 25 kVA
- Up to 600V

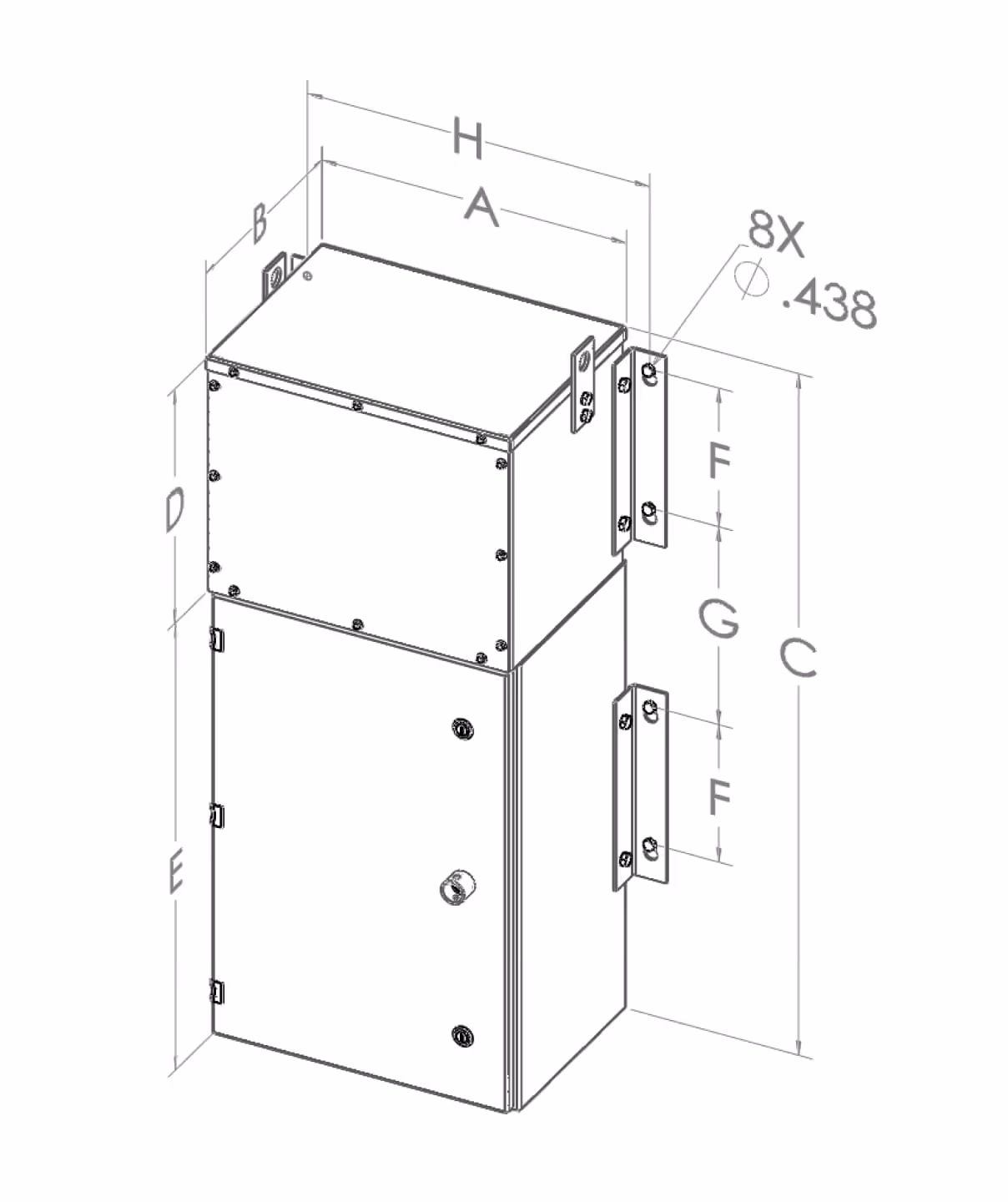

Technical Specs
Transformer
- Encapsulated in polyester resin
- Aluminum windings
- 180° insulation class
- 115° temperature rise
- Meet NEMA, ANSI, & OSHA standards
- Optional: Single electrostatic shield
Primary Breaker
- Molded Case Circuit Breaker (MCCB) for primary side protection
- 14 kA interrupting current capacity
- Optional: 18 kA, 25 kA, and 35 kA interrupting current
Secondary Main Breaker Load Center
- Molded Case Circuit Breaker (MCCB) for secondary side protection
- Space for up to 30 secondary branch breakers
- Neutral bar is grounded to enclosure
Enclosure
- Wall-mounting
- Padlockable quarter-turn for panel
- Floor mounting brackets or provisions
- NEMA 3R indoor/outdoor
- Optional: Stainless Steel
