2500 kVA Padmount Transformer
Three-Phase, oil-filled, tamper-proof padmount transformer designed for reliable power distribution in public areas. Fill in the fields below to get a quote.
Our team will respond as soon as possible. Our average response time during business hours is 30 minutes.
Transformer Details
Maddox tamper-proof, compartmentalized, liquid-filled, pad-mounted transformers are all-in-one units. Designed, built, and tested in accordance with the highest industry standards including NEMA, ANSI C.57, DOE, and IEEE as applicable. They can be customized with over-current protection, and sectionalized switching to give you maximum control over your distribution system.
Product Scope
- 30 kVA - 10,000 kVA
- Up to 35,000v
Transformer Specs
Standard specs
- High-grade silicon-steel core
- Pad-lockable door handle

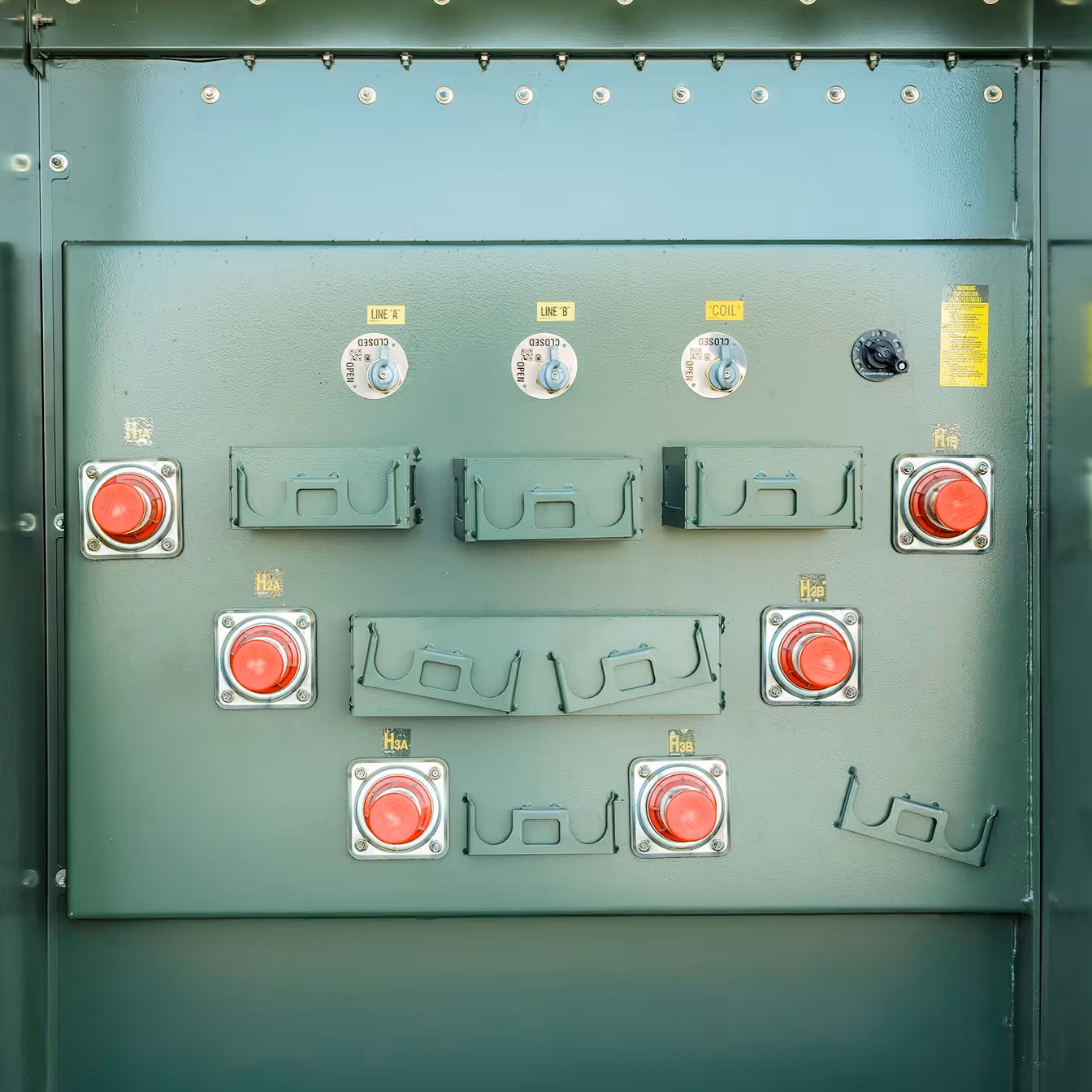

- No-load tap changer
- Reinforced carbon steel tank

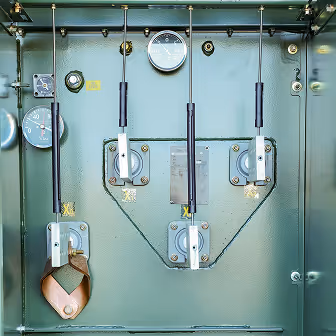

- Externally clamped high- and low-voltage bushings
- Pressure relief valve
- Pressure vacuum gauge
- Liquid temp gaugeLiquid level gauge

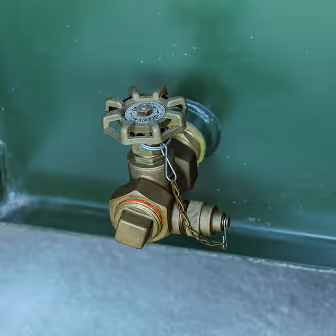

- Drain and sample valve
- Schrader valve
- 65 degree C rise
Standard specs
- Environmentally friendly, high fire-point FR3 oil (KNAN)
- Copper windings
- Key interlock provisions
- Stainless steel tank
- Gauges with contacts
- Externally accessible drain and sample valve
- External gauge package
- Lid-mounted pressure relief device
- Sudden pressure relay
- Lightning arrestersViewing windows in cabinet55/65 degree C rise
- Step-up solar and wind duty design
- Electrostatic shielding
- K-rated design
Warranty
Maddox stands behind the quality of each product, offering the same premium industry warranties on both new and remanufactured transformers. Padmount and substation transformers have a standard 3 year warranty with the option to extend to 5 years.
Dimensions & Weights
Below are the approximate Maddox padmount transformer dimensions. Please request a quote to get exact drawings and dimensions for your transformer.
| kVA | Dimensions (HxWxD) | Gallons | Weight (Lbs) |
|---|---|---|---|
| 300 | 59"x51.5"x54.5" | 196 | 4,056 |
| 500 | 59"x59.5"x60.5" | 210 | 5,023 |
| 750 | 73"x65"x60.5" | 358 | 7,664 |
| 1000 | 73"x65"x61" | 354 | 8,530 |
| 1500 | 73"x71.5"x67.5" | 410 | 10,782 |
| 2000 | 75"x67.5"x86" | 433 | 12,490 |
| 2500 | 78"x75.5"x84" | 545 | 14,246 |
| 3000 | 84"x62.5"x99.5" | 550 | 14,014 |
| 3750 | 75"x80.5"x105.5" | 730 | 17,785 |
Shipping
All shipping costs charges are included in your quoted price. In stock transformers usually ship out in within 1-2 business days. In an emergency please reach out for same day or next day expedited options.
