Types of transformers

Discover different types of transformers & their applications, including liquid-filled, dry-type, padmount, substation, polemount, and submersible transformers.

Written by:
Ben Gulick & Mac Spiller

December 20, 2022

Types of Transformers banner displaying a variety of different transformers

Introduction

Unless you are in a business that works frequently with transformers, they’re probably not something you think about on a daily basis. For most of us, transformers are “out of sight, out of mind” as we go about our daily lives, but the results of the work that transformers do are hard to ignore. Every time we turn the lights on, charge our cell phones, cook dinner, or do anything that requires electricity, we’re benefitting from the work of a transformer somewhere. And why is that? Transformers do one very simple but crucial task—take electrical power from an input source and step it up or down into a voltage we can use.

At the simplest level, a transformer is comprised of two coils:

  1. The primary coil that receives one voltage
  2. The secondary coil that transforms the voltage

If you're interested to learn more about how transformer coils work, check out our complete guide to electrical transformers.


The transformers we’re closest to are those we call distribution transformers—the transformers that step voltage down to something we can use in houses, factories, shopping malls, airports, and other domestic and commercial settings. Because electrical systems vary widely within distribution networks, there are several types of transformers designed for distinct applications.

Differences Between Liquid-Filled and Dry-Type Transformers

There are two basic categories of transformers—liquid-filled and dry-type.

What are liquid-filled transformers?

Liquid-filled transformers contain a dielectric fluid that both cools and insulates the windings through the process of natural convection. The insulation class of a typical fluid-filled transformer is around 120 degrees C (there are other options, but the version that utilizes upgraded Kraft paper [TUK] is widely used). The sealed tank design of liquid-filled transformers makes them the ideal choice for outdoor applications. The natural convection via a dielectric fluid makes liquid units more effective at dissipating heat than dry-types; this also makes liquid transformers more capable of weathering overload scenarios.

What are Dry-Type Transformers?

Dry-type transformers are primarily designed for indoor applications. Their insulation class rating is typically 220 degrees C. Dry-types cool by natural convection with the ambient air surrounding the windings; for this reason, the enclosure is usually ventilated. Their average winding temperature rise is higher than that of a liquid-filled unit, as they typically generate more heat under normal loading conditions. In general, dry-types will not handle overload situations as well as liquid units without additional design implementations. Since they contain no fluid, they don’t require any type of containment, which makes them the best choice for indoor installations.

Types of Liquid-Filled Transformers

Padmount Transformers

A green Maddox oil filled padmount transformer

Padmount” is short for “compartmentalized, tamper-proof, pad-mounted” transformer. Due to their tamper-proof design, they’re most often used as a low-profile option for transformer installations in public areas like airports, college campuses, and department buildings. They’re usually green in color, which helps them blend in with the surrounding outdoor greenery.

Padmounts have a front cabinet that encloses incoming and outgoing cable connections, as well as several devices for operation and monitoring. The cabinet can also house special bayonet-type fusing along with under-oil rotary-type load-break switches. This combination of fusing and switching within the transformer itself makes it an ideal standalone option in applications where additional switchgear is not ideal. This also often makes the padmount the most economic option for transformer installations.

Substation Transformers

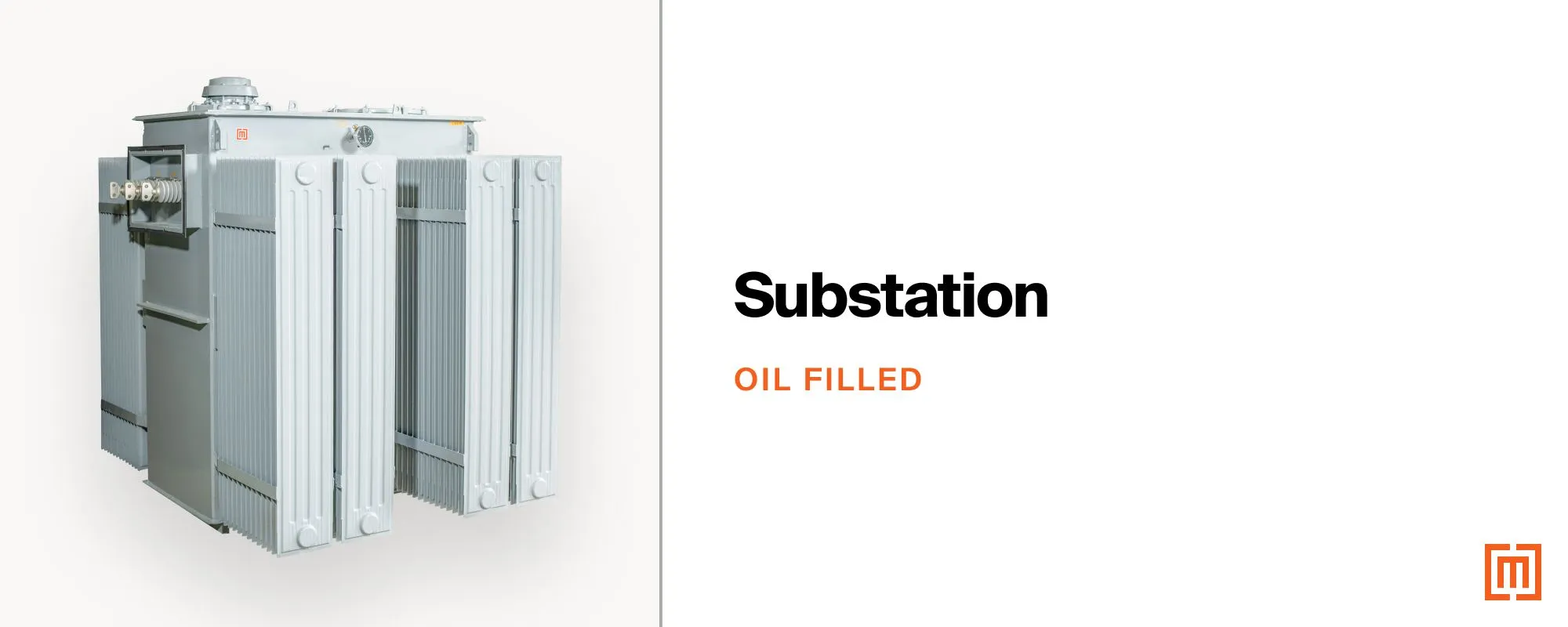

A Maddox oil filled substation transformer

Substation transformers are typically built with a more rugged tank design. All monitoring and operational devices are located on the exterior of the tank, and they often come with external cooling fan packages to allow for an extended loading capacity. For these reasons, substation transformers are typically installed in heavy industrial areas that are inaccessible to the public. This type of transformer is often installed in conjunction with several other pieces of electrical distribution equipment (including other transformers), which all together make up what’s known as a substation (from which substation transformers get their name).

Pole Mount Transformers

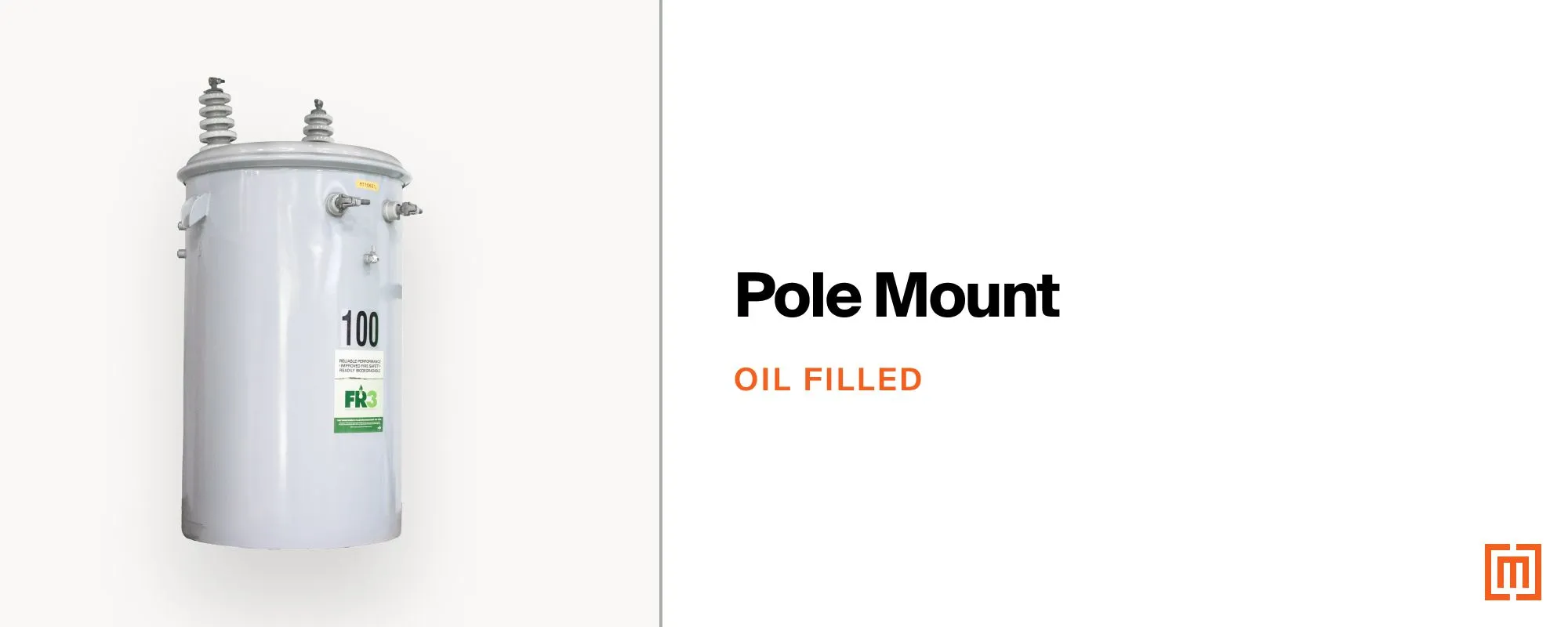

An oil filled pole mount transformer

Pole mount transformers, as their name suggests, are transformers mounted on high electrical-grade poles for power distribution. Because they’re typically built as single-phase units, they’re often found in residential areas where power is stepped down for household use. They can also be banked together in groups of three for three-phase applications in larger commercial and industrial areas. In recent years, single-phase pole mounts have been passed over for units that utilize underground distribution lines, such as smaller single-phase padmounts.

Submersible / Network Transformers

An oil filled submersible network transformer

Submersible, network, or vault-type transformers are units designed for subsurface installations. Because of where they’re installed, they require a design that accounts for both space constraints and ambient temperature challenges. These units are typically used below ground in large, densely packed cities, serving apartments, office buildings, and the like. Their rugged design also accounts for the possibility of prolonged submersion in the event of flooding.

Types of Dry-Type Transformers

Low Voltage Dry-Type Transformers

A Maddox low voltage dry type transformer

Low voltage dry-type transformers are typically rated on the primary and secondary at 600 volts and below. These transformers are most often used inside commercial and industrial buildings for stepping the building service voltage up or down for a piece of equipment that operates at a different voltage. These units are referred to as “general purpose” dry-types, due to the type of floor-mounted enclosure they employ.

Medium Voltage Dry-Type Transformers

A Maddox medium voltage dry type transformer

Medium voltage dry-type transformers are most often built in a unit substation style enclosure and installed in a lineup with other electrical distribution equipment—in most cases, with a medium voltage switch on one end and a low voltage switchgear on the other. A single unit could also be a standalone transformer with cables coming into the primary and secondary via large junction boxes or air terminal chambers on each end.

Cast Coil Transformers

A dry type cast coil transformer

Offered as a more rugged option for medium voltage dry-type applications, cast coil transformers have their windings completely encased in a resin epoxy material. Cast coils are best suited for applications where the moisture content in the environment is higher, or where the installation is located in adverse conditions where a dry-type transformer with exposed windings could be compromised.

Autotransformers

A Maddox dry type autotransformer

Unlike regular two-winding transformers, the primary and secondary windings on an autotransformer are located on a single coil. They’re not ideal for applications where isolation between the primary and secondary is required. But the absence of a separate secondary coil often makes them smaller and more cost-effective, so they’re a good solution for many ordinary applications needing a voltage stepped up or down.

Drive-Isolation Transformers

A Maddox drive isolation dry type transformer

Drive-isolation dry-type transformers are designed for applications with motor drives, such as VFDs. They’re designed like standard isolation transformers, with two separate primary and secondary windings, but they’re also built to handle heavier loading profiles with higher levels of harmonics. These units are K-rated with a minimum rating of K-4. They also come with a larger 200% rated neutral conductor and an electrostatic shield between the primary and secondary coils. Drive-isolation transformers can be used for most applications where the harmonic content in the system is higher than normal.

Encapsulated Transformers

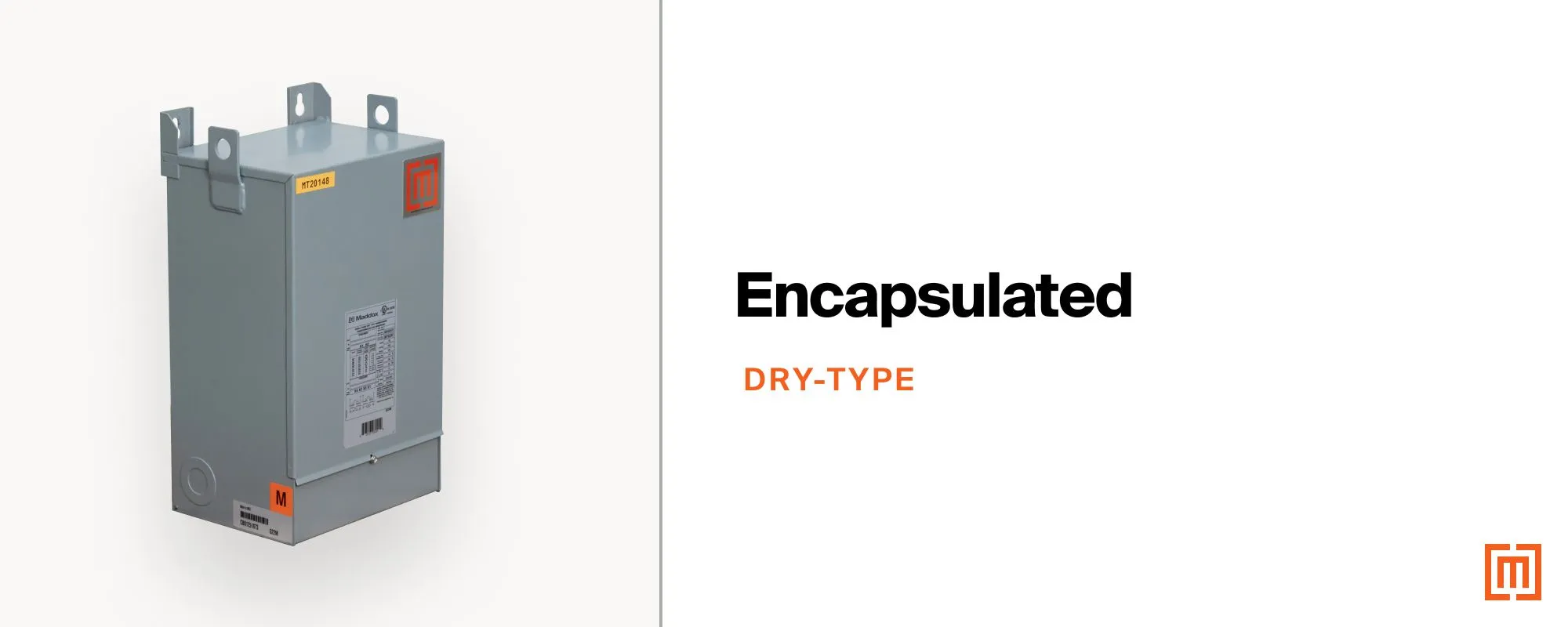

A Maddox encapsulated dry type transformer

Encapsulated transformers have their windings completely encased by sand and an epoxy resin, which is then baked around the windings to create a hardy casing that protects against the ingress of moisture and debris. These transformers are excellent for harsh environments where the windings could be exposed to excessive moisture and dirt.
